Technical Specifications
Additional Information
- Modular design for flexible monitoring configurations.
- Supports 8 parameters: ECG, RESP, SpO₂, NIBP, PR, TEMP, with optional IBP and ETCO₂.

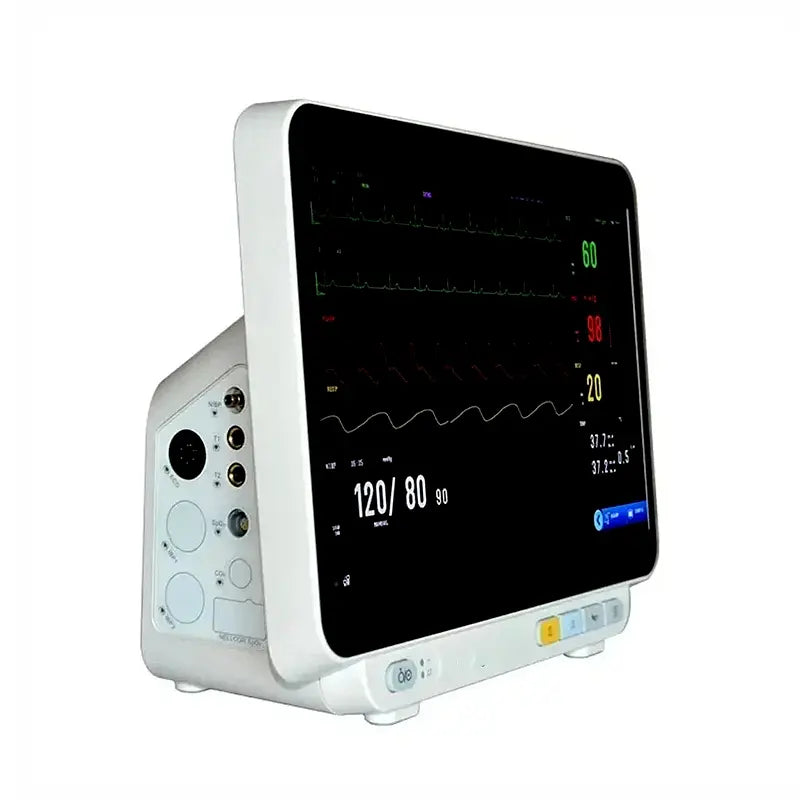

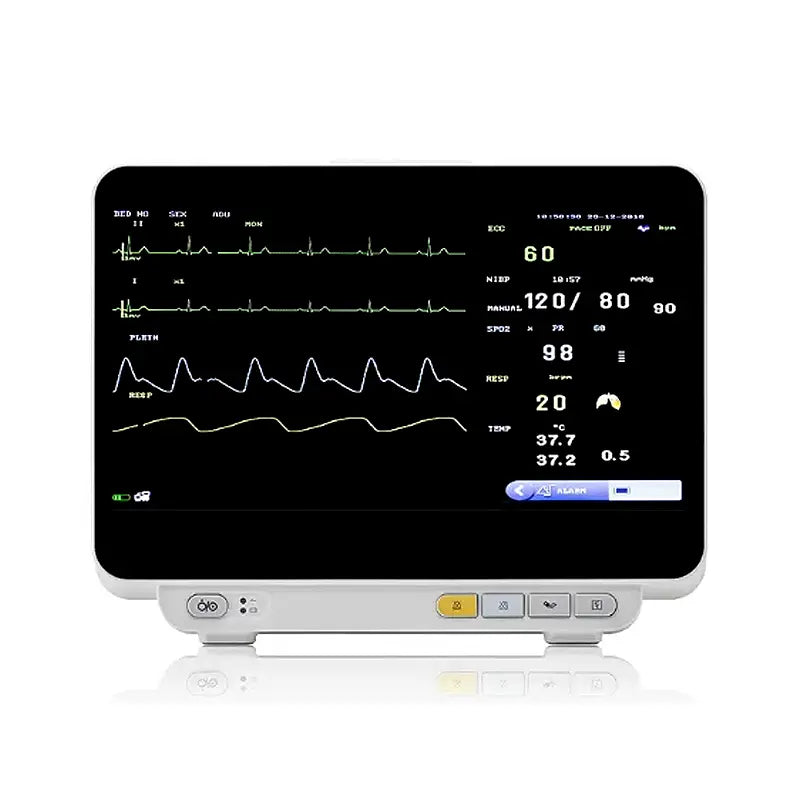

- 14-inch TFT LCD with multi-channel waveform display.
- Touchscreen operation (optional).
- Real-time S-T segment analysis and pacemaker detection.
- Built-in lithium battery with approximately 4 hours of backup.
- Supports wired and wireless central monitoring systems.
- Multi-language interface support.
- Data storage: 400 NIBP records, 6000 seconds of ECG waveform recall, and 7-day trend charts.
Frequently Asked Questions
1. What parameters does this patient monitor support?
A. This patient monitor supports standard parameters including ECG, RESP, SpO₂, NIBP, PR, and TEMP. Optional parameters include Dual IBP, ETCO₂, and Nellcor SpO₂, allowing flexible monitoring configurations according to clinical requirements.
2. What are the display and operating features of this patient monitor?
A. The patient monitor features a 14-inch TFT LCD with multi-channel waveform display and optional touchscreen operation. It supports Diagnosis, Monitoring, and Surgery modes, along with real-time S-T segment analysis and pacemaker detection.
3. How long can the patient monitor operate on battery power?
A. The patient monitor is equipped with an 11.1V, 24Wh rechargeable lithium-ion battery that provides approximately 4 hours of backup, helping maintain monitoring during patient transport or temporary power interruptions.
4. What data storage and review functions are available on this patient monitor?
A. The patient monitor supports 7-day trend charts, 400 NIBP measurement records, 6000 seconds of ECG waveform recall, and alarm records, enabling clinicians to review patient monitoring data and track changes over time.
5. Can this patient monitor be connected to a central monitoring system?
A. Yes, the patient monitor supports wired and wireless central monitoring system connectivity. It also features a multi-language interface, making it suitable for integration into different clinical monitoring environments.
