Technical Specifications
Additional Information
- Adopts a high-resolution thermal printing system (8 dot/mm), with no need for adjustments. Recording frequency: up to 150Hz.
- Real-time and continuous recording of clear and accurate ECG waveforms and annotation characters, including lead mark, sensitivity, paper speed and filter state.
- Full-digital filter design with anti-baseline drift, AC and EMG interference reduction.
- Automatically adjusts the baseline, optimizes print settings and supports optional rhythm leads.
- In AUTO mode, recording can be completed by pressing the button once, improving work efficiency.
- Adopts digital signal processing technology to obtain high-quality ECG waveforms through power frequency filter, baseline filter and EMG filter of ECG signal.
- Provides auto-measurement, auto-analysis and auto-diagnosis functions for routine ECG parameters, helping reduce the doctor's workload and improve work efficiency.
- Supports synchronous collection for 12-lead ECG with multiple printing formats, including 2×6+1 (rhythm lead), 2×6, 3×4, 3×4+1 (rhythm lead), 4×3, 4×3+1 (rhythm lead), 6×2, 6×2+1 (rhythm lead), rhythm 2, rhythm 3, rhythm 4, rhythm 5, rhythm 6, rhythm 7, channel record, etc.
- Displays real-time 3/6/12-lead ECG, “Lead off” and “Lack of paper” on one screen, with ECG DEMO mode.
- Supports auto-check and auto-analysis of ECG parameters. ECG waveforms can be recorded manually or automatically, and patient information can be stored in the case database.
- Time print can be set to every 1/2/3/5/10/20/30/60 minutes.
- Print settings include “Print and save” (print waveform and save case), “Print no save” (only print waveform without saving case), and “Save no print” (only save case without printing waveform).
- Supports AC/DC power, built-in rechargeable lithium battery and an auto-protection circuit, with automatic power-off when there is no operation for the appointed time.
- Stores more than 1000 cases for convenient case review and statistics.
- Multi-language interface and report support: Chinese, English, French, Spanish, Turkish, Polish, Italian, German, Portuguese, Kazakh, Russian, Ukrainian, Vietnamese, Serbian, Slovenian and Slovak.
- Not all optional functions are available in all regions. Please contact us for details.
Frequently Asked Questions

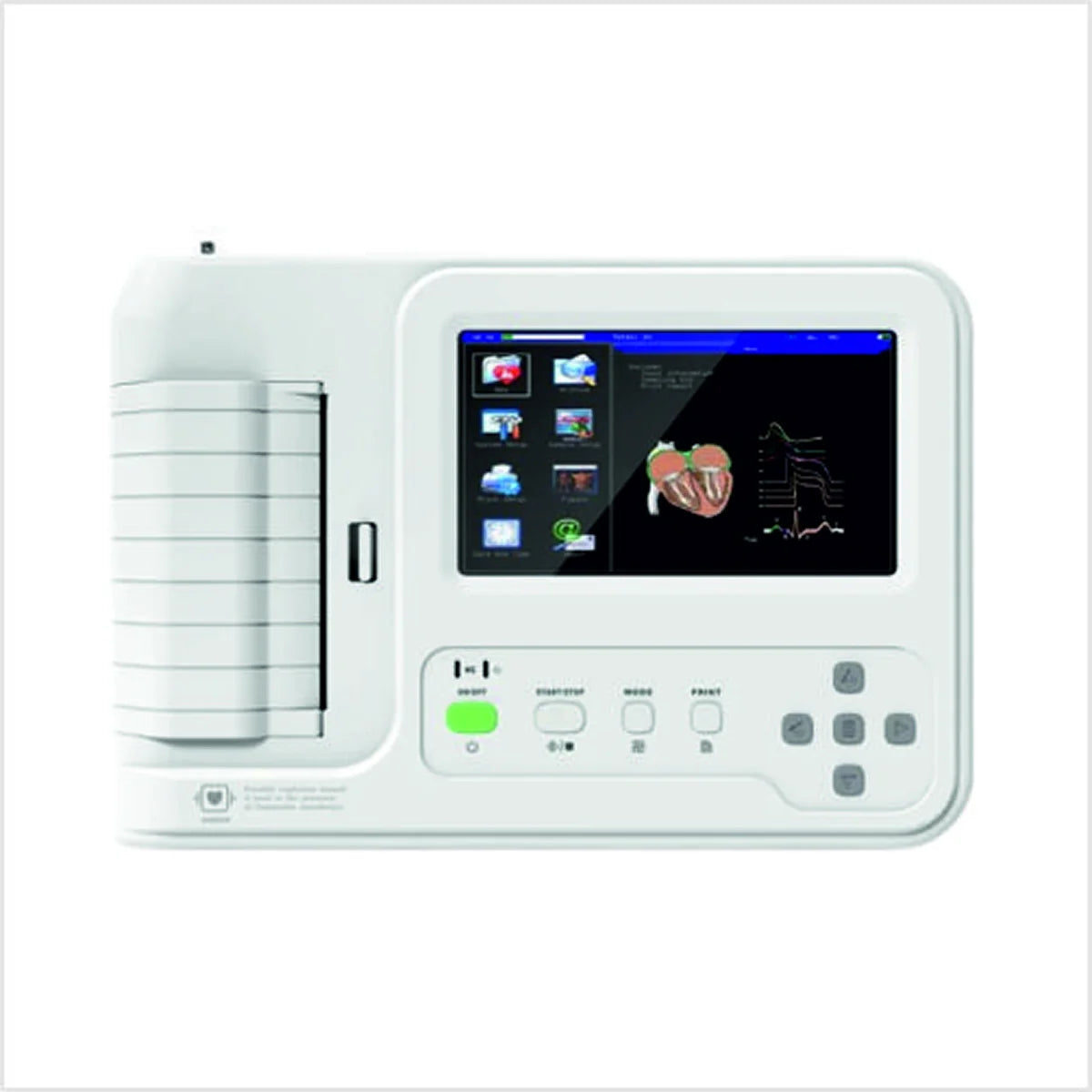

The Contec ECG600G is a 6-channel ECG machine with synchronized collection of 12-lead ECG signals for comprehensive cardiac waveform recording.

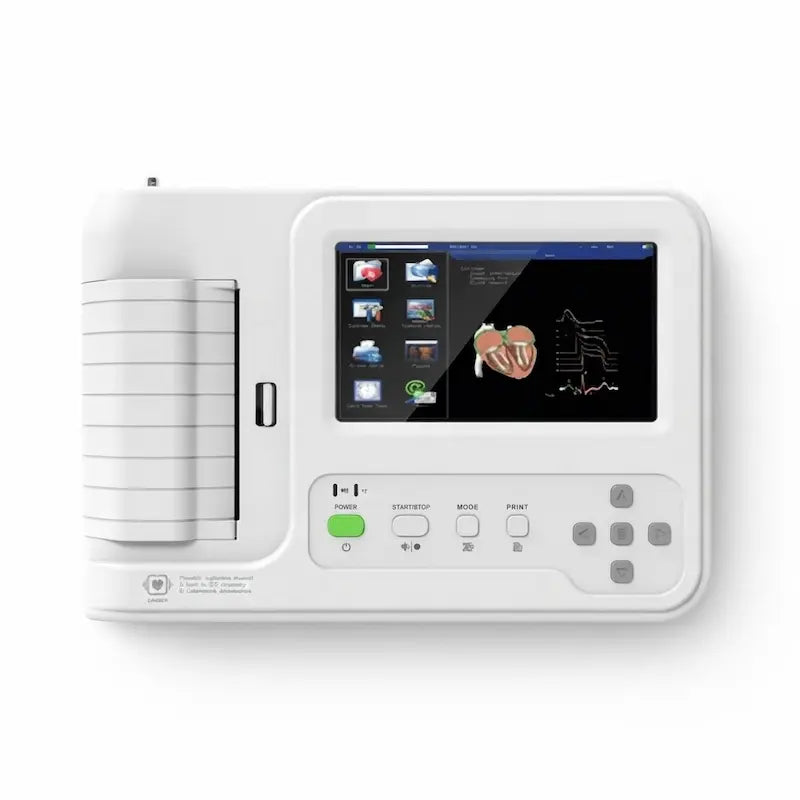

It features a 7-inch high-resolution TFT color touch screen that displays ECG waveforms, print mode, sensitivity, paper speed, filter status and other clinical information.
The built-in memory can store more than 1000 ECG cases, allowing users to review patient records and perform case statistics conveniently.
The machine supports routine 12-lead and Cabrera-lead waveform display and provides AC, DFT, EMG and low-pass filters for high-quality ECG waveform acquisition.

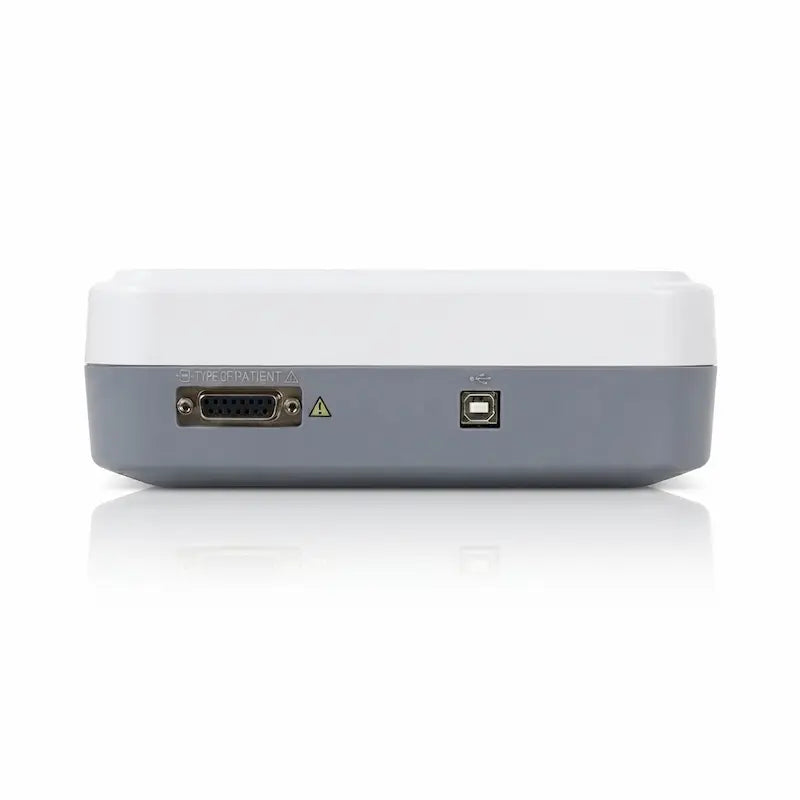

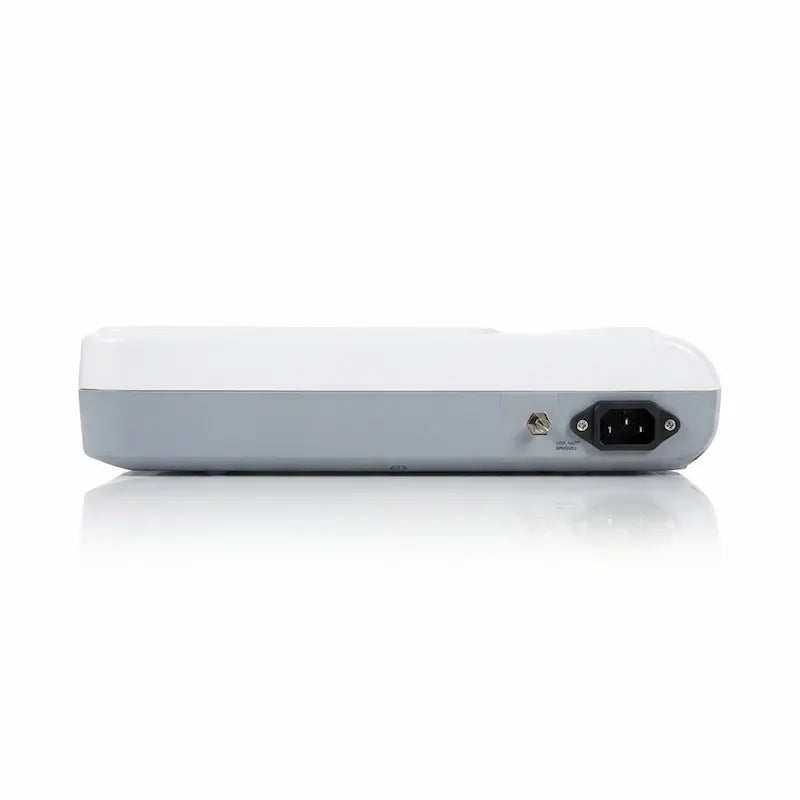

The Contec ECG600G supports USB connectivity, PC connection, external printer connection, USB storage devices and SD card support. It can also operate using AC/DC power or a rechargeable lithium battery.
