Technical Specifications
Additional Information
- Supports standard 5ml, 10ml, 20ml/30ml, and 50ml/60ml syringes from any standard brand.
- Accuracy: ±2% with correct calibration.
- Multiple infusion modes including Rate Mode, Time Mode, and Dose Mode.
- Wide infusion rate range, up to 2000 ml/h with 50ml/60ml syringes.
- Dose Mode supports drug mass, dose, and patient weight settings.
- Total volume range: 0.1–9999.9 ml.
- Programmable and adjustable bolus function with bolus volume from 1.0–50.0 ml.
- KVO function helps maintain catheter patency after infusion.
- Dynamic Pressure System (DPS) with Low, Medium, and High pressure settings.
- Comprehensive alarms for syringe loose, occlusion, syringe empty, battery empty, infusion complete, syringe near empty, battery low, and errors.
- 3-level adjustable alarm volume: Low, Medium, and High.
- Built-in rechargeable 7.2V, 2600mAh lithium battery with up to 8 hours of continuous operation.
- Supports AC 100–240V power supply and 12–15V DC power input.
- Protection: Class I, Type CF, IPX4.
- Compact design measuring 240 × 150 × 117 mm with a net weight of 2.0 kg.
Frequently Asked Questions

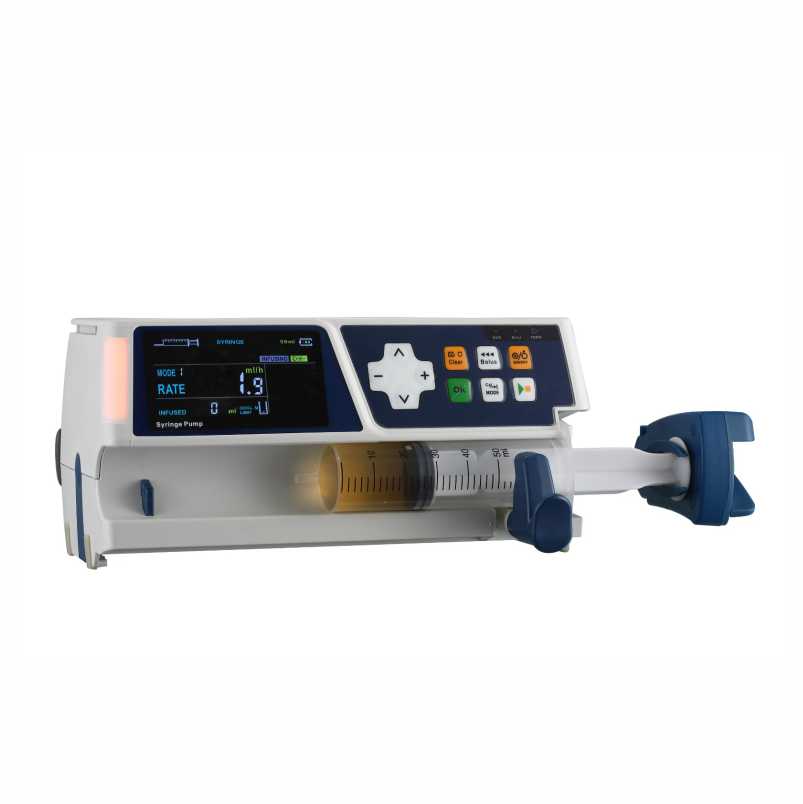

1. What syringe sizes are compatible with the DEEPMED DP Fusion SP-01?
The syringe pump supports 5ml, 10ml, 20ml/30ml, and 50ml/60ml standard syringes from any standard brand.
2. What is the infusion rate range of the DP Fusion SP-01?
The infusion rate depends on the syringe size and can range from 0.01ml/h up to 2000ml/h for 50ml/60ml syringes.
3. Does the syringe pump have a bolus function?
Yes. It provides a programmable and adjustable bolus function, with a bolus volume range of 1.0–50.0ml in 0.1ml increments.
4. What alarms are available on the syringe pump?
The pump provides alarms for syringe loose, occlusion, syringe empty, battery empty, infusion complete, syringe near empty, battery low, and errors.
5. How long can the built-in battery operate the pump?
The built-in rechargeable 7.2V, 2600mAh lithium battery provides up to 8 hours of continuous operation.
