Technical Specifications
Additional Information

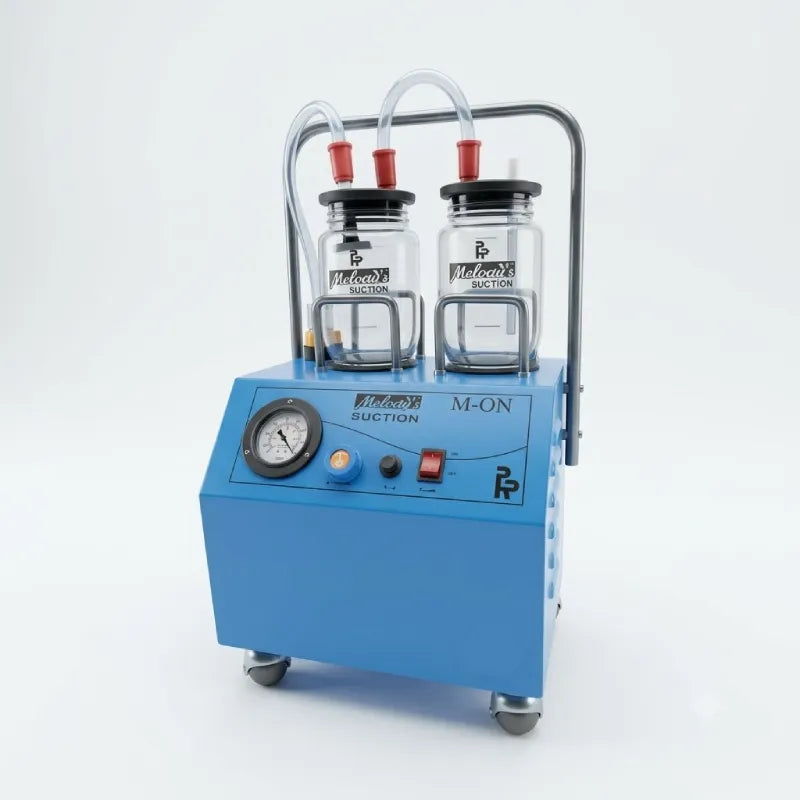

- Anti-Corrosive MS Trolley: Powder-coated mild steel housing with four castors for easy mobility and durability.

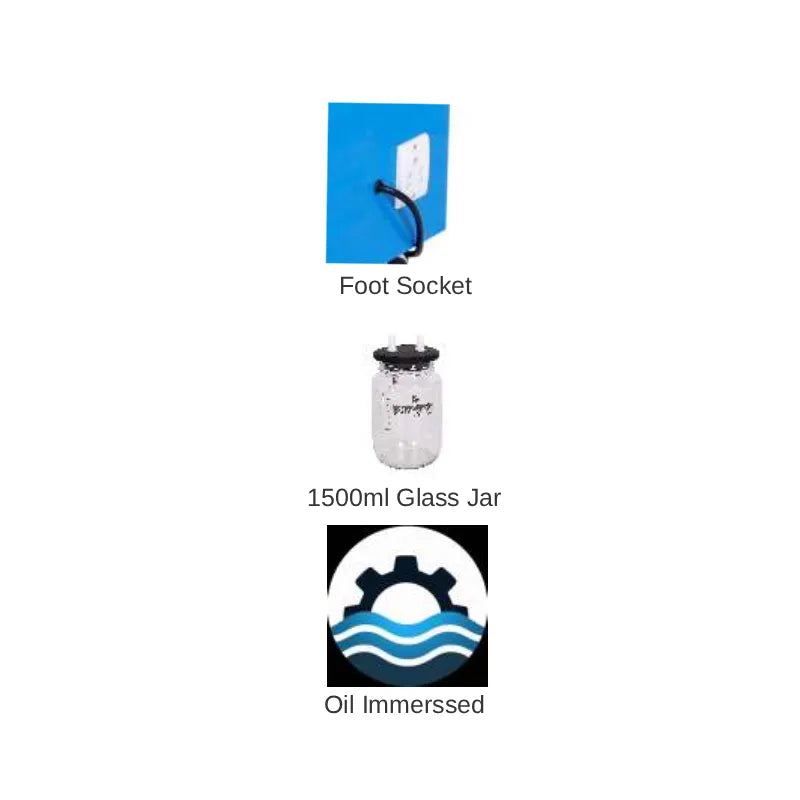

- Dual Glass Collection Jars: Supplied with 2 × 1.5-litre glass jars for efficient fluid collection.
- Mechanical Overflow Safety: Mechanical overflow protection helps prevent liquid from entering the pump.
- Oil-Immersed Rotary Vane Pump: Designed for reliable vacuum generation and consistent suction performance.
- High Vacuum Performance: Maximum vacuum of 700 mmHg ± 10 and a flow rate of 25–30 LPM.
- Reusable Bacterial Filter: Reusable bacterial filter helps reduce contamination risks during operation.
- Non-Collapsible PVC Tubing: Supplied with 10 mm inner diameter tubing, 2 metres in length, for dependable suction.

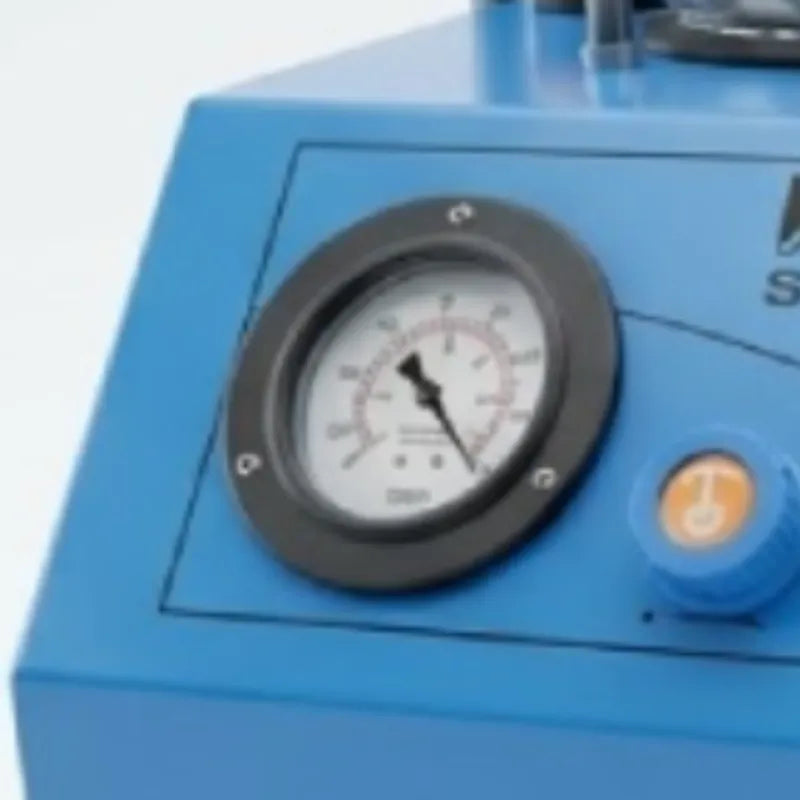

- Large Vacuum Gauge: 3-inch vacuum gauge for convenient monitoring of suction pressure.
- Low Noise Operation: Approximate noise level of 50 dB(A) ± 3 for comparatively quiet operation.
- Efficient Power Supply: Operates on 220 VAC, 50/60 Hz, with 180 W power consumption.
- Single-Phase Motor: Equipped with a 1/4 HP motor rated at 1440 RPM for dependable performance.
Frequently Asked Questions
Series 1: What is this suction machine used for?
This suction machine is designed to generate vacuum for the removal of fluids and secretions in medical settings.
Series 2: What is the maximum vacuum and flow rate of this machine?
The machine offers a maximum vacuum of 700 mmHg ± 10 and a flow rate of 25–30 LPM.
Series 3: What is the capacity of the collection jars?
The machine comes with two 1.5-litre glass collection jars for collecting fluids during suction procedures.
Series 4: What type of pump and motor does this suction machine use?
It features an oil-immersed rotary vane pump and a 1/4 HP, single-phase motor operating at 1440 RPM.
Series 5: What safety features does this suction machine include?
The machine includes mechanical overflow protection and a reusable bacterial filter to support safe and hygienic operation.
Series 6: Is the suction machine easy to move?
Yes, it features a powder-coated, anti-corrosive mild steel trolley mounted on four castors for convenient mobility.
Series 7: What is the power requirement of this suction machine?
The machine operates on a 220 VAC power supply at 50/60 Hz, with a rated power consumption of 180 W.
Series 8: What is the noise level of this suction machine?
The approximate operating noise level is 50 dB(A) ± 3.
Series 9: What type of tubing is supplied with the machine?
It is supplied with non-collapsible PVC tubing measuring 10 mm in inner diameter and 2 metres in length.
Series 10: How can the suction pressure be monitored?
The machine features a 3-inch vacuum gauge for monitoring the suction pressure during operation.
