Technical Specifications
Additional Information

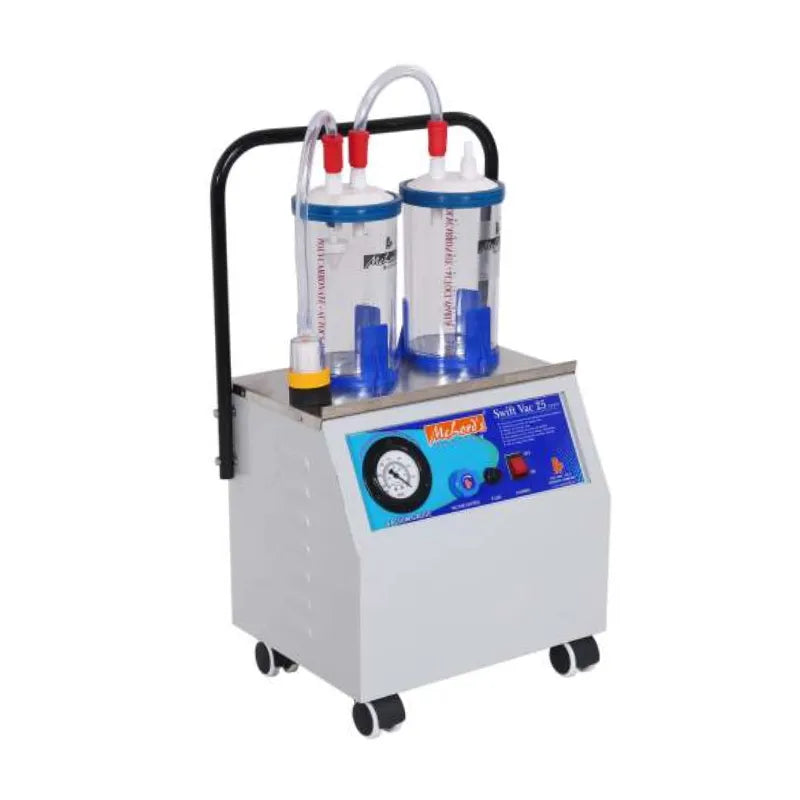

- Anti-Corrosive MS Trolley with SS Top: Powder-coated mild steel construction with a stainless steel top and four castors for durability and easy mobility.

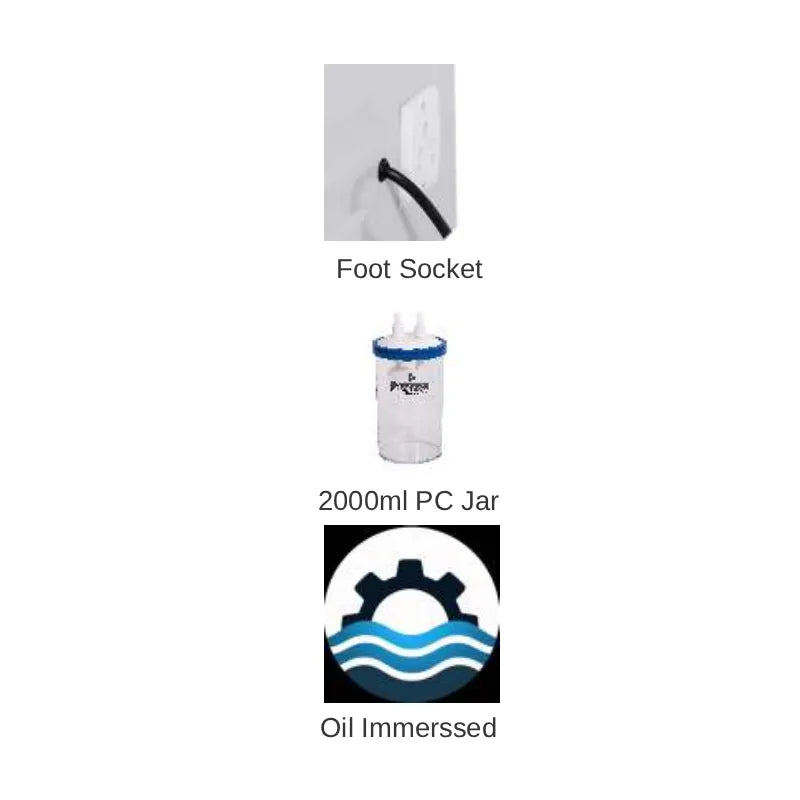

- Dual Polycarbonate Collection Jars: Equipped with 2 × 2-litre polycarbonate jars for convenient fluid collection.
- Mechanical Overflow Safety: Mechanical overflow protection helps prevent collected fluids from entering the pump.
- Oil-Immersed Rotary Vane Pump: Designed for reliable vacuum generation and consistent suction performance.
- High Vacuum Performance: Maximum vacuum of 700 mmHg ± 10 with a flow rate of 25–30 LPM.
- Reusable Bacterial Filter: Helps reduce contamination risks during suction operations.
- Non-Collapsible PVC Tubing: Supplied with 10 mm inner diameter tubing measuring 2 metres in length for dependable suction.
- 3-Inch Vacuum Gauge: Enables convenient monitoring of suction pressure during operation.
- Low Noise Operation: Approximate noise level of 50 dB(A) ± 3 for comparatively quiet performance.
- Efficient Power Consumption: Operates on a 220 VAC power supply at 50/60 Hz with 180 W power consumption.
- Reliable Single-Phase Motor: Features a 1/4 HP motor operating at 1440 RPM for consistent performance.
Frequently Asked Questions
1: What is this medical suction machine used for?
This medical suction machine is designed for removing fluids and secretions in hospitals, clinics, and other healthcare settings.
2: What is the maximum vacuum and flow rate of this suction machine?
The machine provides a maximum vacuum of 700 mmHg ± 10 and a flow rate of 25–30 LPM for efficient suction performance.
3: What is the capacity of the collection jars?
The machine is equipped with two 2-litre polycarbonate collection jars for collecting fluids during suction procedures.
4: What type of pump is used in this suction machine?
It features an oil-immersed rotary vane pump designed to deliver reliable vacuum generation and consistent suction performance.
5: What safety features are included in this suction machine?
The machine includes mechanical overflow safety protection and a reusable bacterial filter to support hygienic operation.
6: Is this suction machine easy to move?
Yes, it features a powder-coated, anti-corrosive mild steel trolley with a stainless steel top and four castors for convenient mobility.
7: What are the power requirements of this suction machine?
The machine operates on a 220 VAC power supply at 50/60 Hz, with a rated power consumption of 180 W.
8: What is the operating noise level?
The approximate operating noise level is 50 dB(A) ± 3.
9: What type of suction tubing is supplied?
The machine comes with non-collapsible PVC tubing measuring 10 mm in inner diameter and 2 metres in length.
10: How can the suction pressure be monitored?
A 3-inch vacuum gauge allows users to monitor suction pressure during operation.
11: What type of motor does this suction machine use?
It is equipped with a 1/4 HP, single-phase motor operating at 1440 RPM for dependable performance.
