Technical Specifications
Additional Information
| Product | 3 Channel ECG Machine |
| Display | 7 Inch high resolution color touch screen |
| Lead Acquisition | 12-Lead simultaneous acquisition and display |
| ECG Function | Automatic measurement and interpretation function |
| Filters | Complete digital filters, resisting baseline drift, AC and EMG interface |
| Memory Support | USB flash disk and micro SD card to extend memory |
| Software Upgrade | Via USB/SD card |
| Battery | Built-in rechargeable Li-ion battery |
| Charging Time | Less than 4 hours |
| Connectivity | Connect to the ECG workstation via LAN/USB |
Frequently Asked Questions

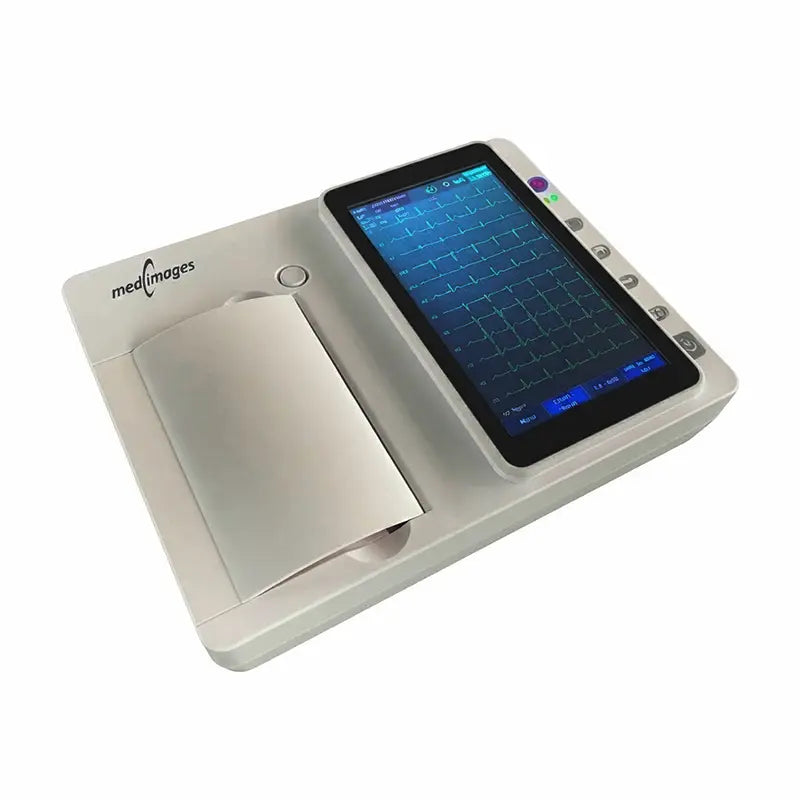

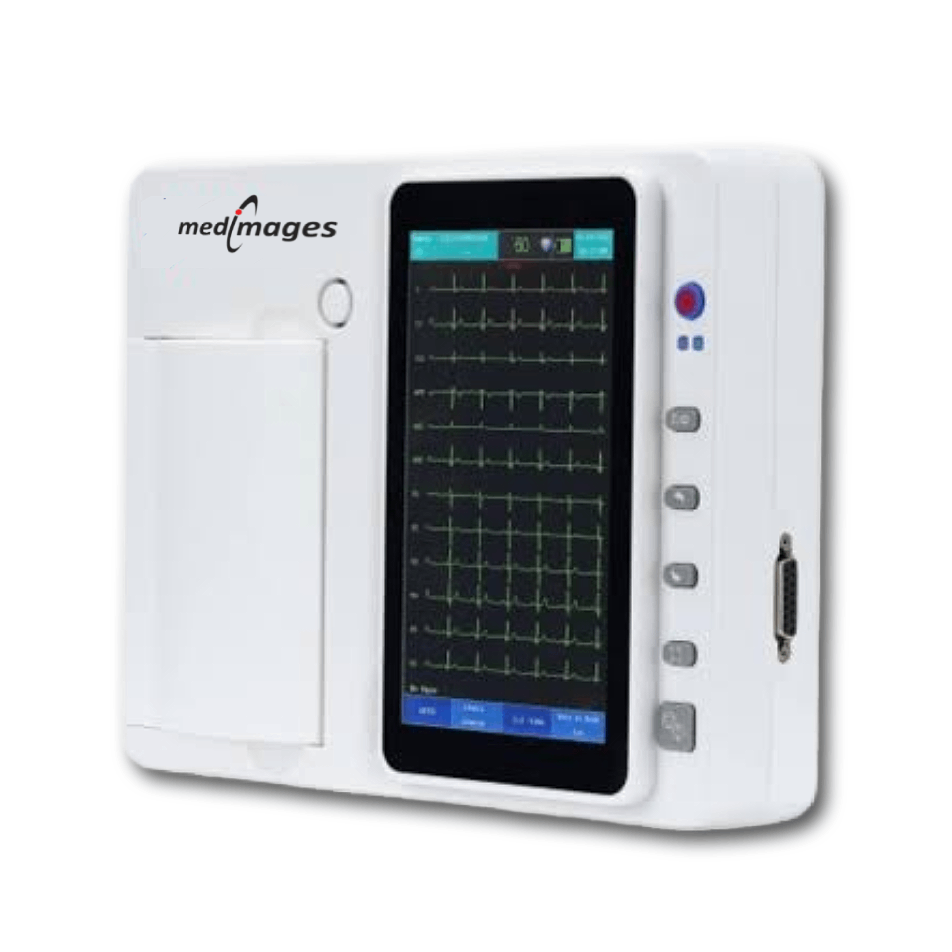

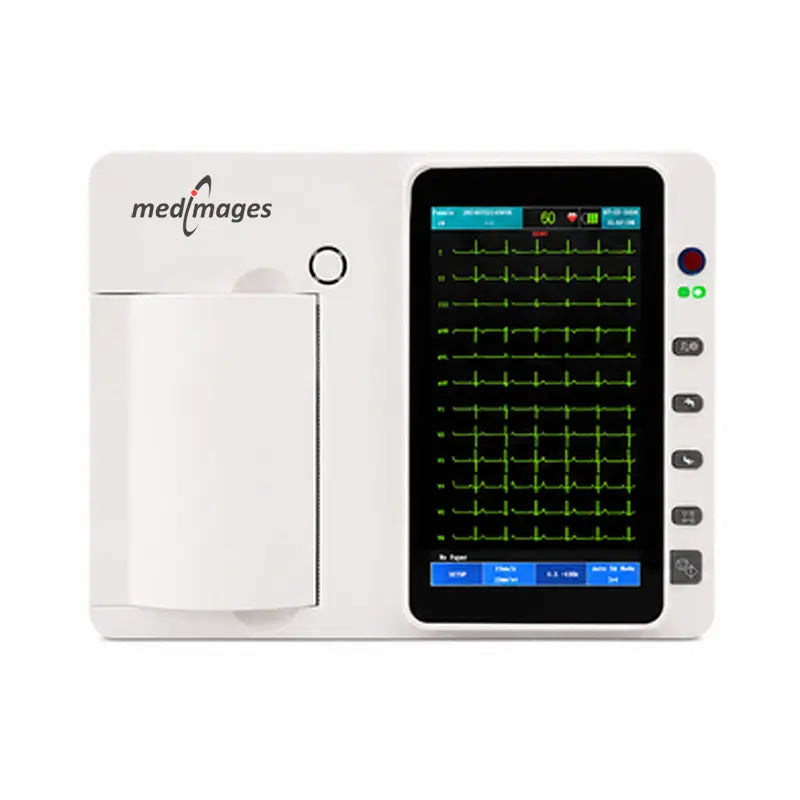

1. What is the Medimages ECG301A?
The Medimages ECG301A is a 3-channel ECG machine featuring a 7-inch high-resolution color touchscreen and 12-lead simultaneous ECG acquisition and display.
2. Does the ECG301A support automatic ECG analysis?
Yes, the ECG301A supports automatic ECG measurement and interpretation to assist with ECG analysis.
3. What type of display does the Medimages ECG301A have?
The ECG301A features a 7-inch high-resolution color touchscreen with a touchscreen interface and function keys for convenient operation.
4. How can ECG reports be stored and transferred?
The ECG301A can store up to 1000 ECG reports and supports USB flash drive, micro SD card, USB, and LAN connectivity for data storage, transfer, and workstation connection.
5. What type of battery does the ECG301A use?
class="faq-answer">The ECG301A uses a built-in rechargeable 2200 mAh Li-ion battery. The battery requires less than 4 hours to charge and provides approximately 2 hours of continuous working or printing.
