- Three-channel ECG recording with trace darkness control

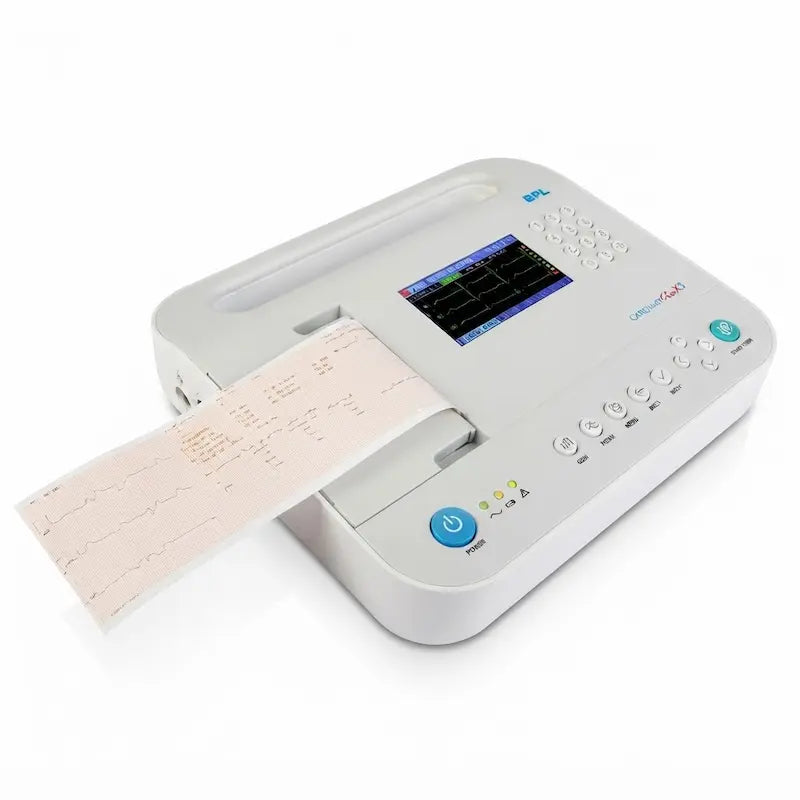

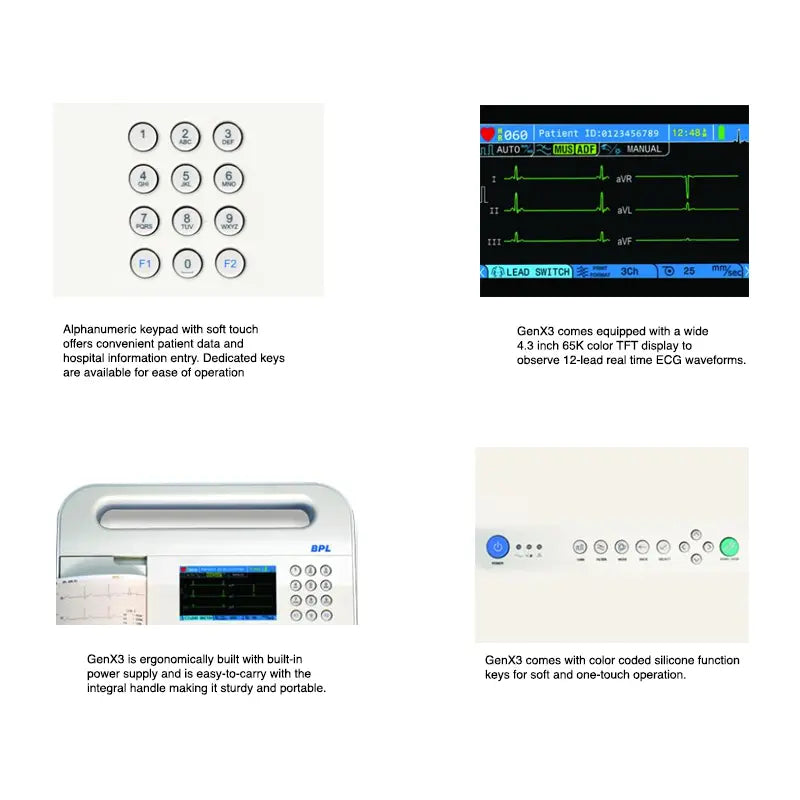

- Wide 4.3-inch 65K Color TFT display
- Glasgow ECG Interpretation algorithm
- 12-bit A/D converter
- 0.05–150 Hz bandwidth
- 1000 Hz sampling frequency
- Alphanumeric keypad with soft silicone keys
- Full disclosure view of ECG analysis on display
- Internal storage of up to 250 ECGs, expandable via USB
- Rechargeable Li battery for energy-efficient operation
- Connectivity supports USB printer
- Optional FTP connectivity
- Export selected records in HL7 format
- Optional real-time ECG transfer to PC through USB
Feature
Frequently Asked Questions
Frequently Asked Questions (FAQs)
1. What is the ECG acquisition resolution?
The ECG system uses 12-bit acquisition with a sampling rate of 1000 samples/sec/channel and an ADC resolution of 2.55 µV/LSB.
2. What filters are included in the ECG system?
It includes mains interference and muscle filters, along with an anti-drift filter for improved ECG signal quality.
3. What type of electrical safety protection does it provide?
The system is Class I with an internal power supply and features Type CF protection.
4. What is the operating temperature range?
The ECG system can operate within a temperature range of +10°C to +40°C.
5. What is the storage temperature range?
The recommended storage temperature range is -10°C to 50°C.
