BPL Cardiart 9108D 12 Channel ECG Machine

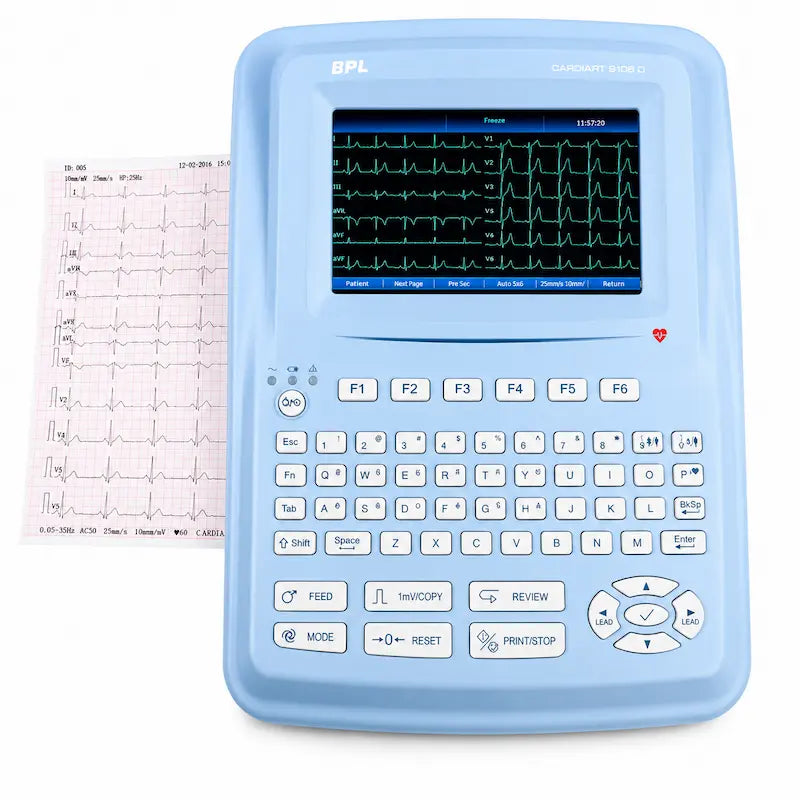

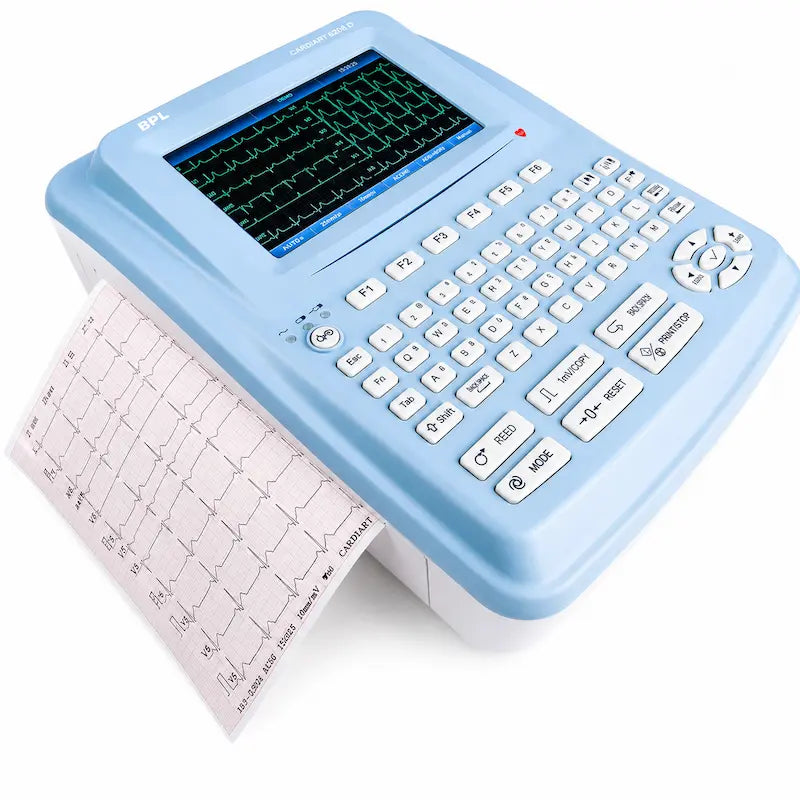

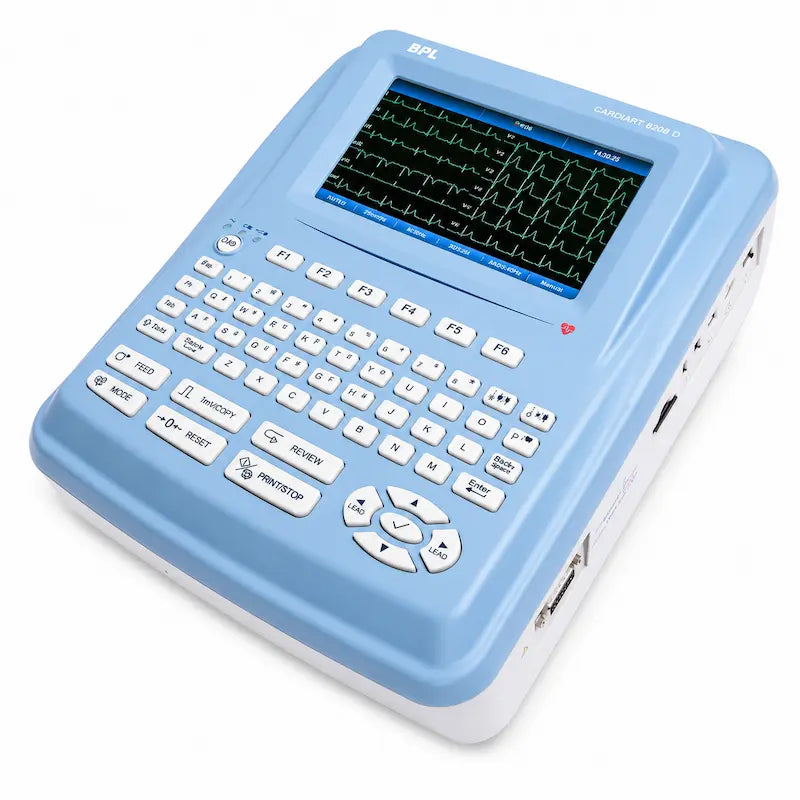

Cardiart 9108D is a compact 12-Channel ECG recorder that comes with advanced Glasgow ECG interpretation algorithm - one of the world's leading resting ECG interpretation. It has a large high-resolution color touch screen and supports external USB printer and multi-format reports export. Experience fast, accurate and simple ECG process & an improved diagnosis.
₹ 100,500.00 ₹ 108,900.00 -8% OFF
Warranty
Fast Delivery
7 Days Replace
COD
BPL Cardiart 9108D 12 Channel ECG Machine
BPL Cardiart 9108D 12 Channel ECG Machine
₹ 100,500.00 ₹ 108,900.00 -8% OFF

Payment Options
COD
Net Banking
Wallet
Cards
EMI
UPI

Med Images Benefits
Genuine Products

100% Genuine Products

Best Price Assurance

Best Price Assurance

Fast Delivery

Fast Pan India Delivery

GST Invoice

GST Invoice Available

Technical Specifications
Additional Information

    Feature

  • 12-channel ECG recording
  • 7-inch high-resolution color LCD with touch screen option
  • Glasgow ECG Interpretation algorithm
  • 24-bit A/D converter
  • 0.01–300 Hz bandwidth
  • 16,000 Hz sampling frequency
  • Internal storage of up to 800 ECGs, expandable via USB and SD card
  • High-performance Li-ion rechargeable battery
  • Report formats: PDF and optional SCP/FDA-XML/DICOM data export
  • Connectivity: FTP, barcode scanner support, and USB printer support
  • Optional Wi-Fi connectivity
  • Optional PC interface software for accessing EMR/PACS/GDT-based systems via HL7 protocol
Frequently Asked Questions

1. What is the BPL 9108D ECG Machine used for?

The BPL 9108D is a hospital-grade 12-channel ECG machine designed for ECG recording, measurement, and automatic interpretation.

2. What type of display does the BPL 9108D have?

It features an LCD screen with touchscreen functionality, with a screen size ranging from 5.1 to 8 inches.

3. What is the sampling rate of the BPL 9108D?

The ECG machine provides a high sampling rate of 16,000 Hz (16,000 samples/sec) with a 24-bit ADC converter.

4. What ECG filters are available on the BPL 9108D?

It includes AC Filter, Drift Filter, EMG Filter, and Low Pass Filter for ECG signal processing.

5. What is the battery backup of the BPL 9108D ECG Machine?

The machine uses a rechargeable Lithium-Ion battery and provides up to 4 hours of battery backup on a full charge.
